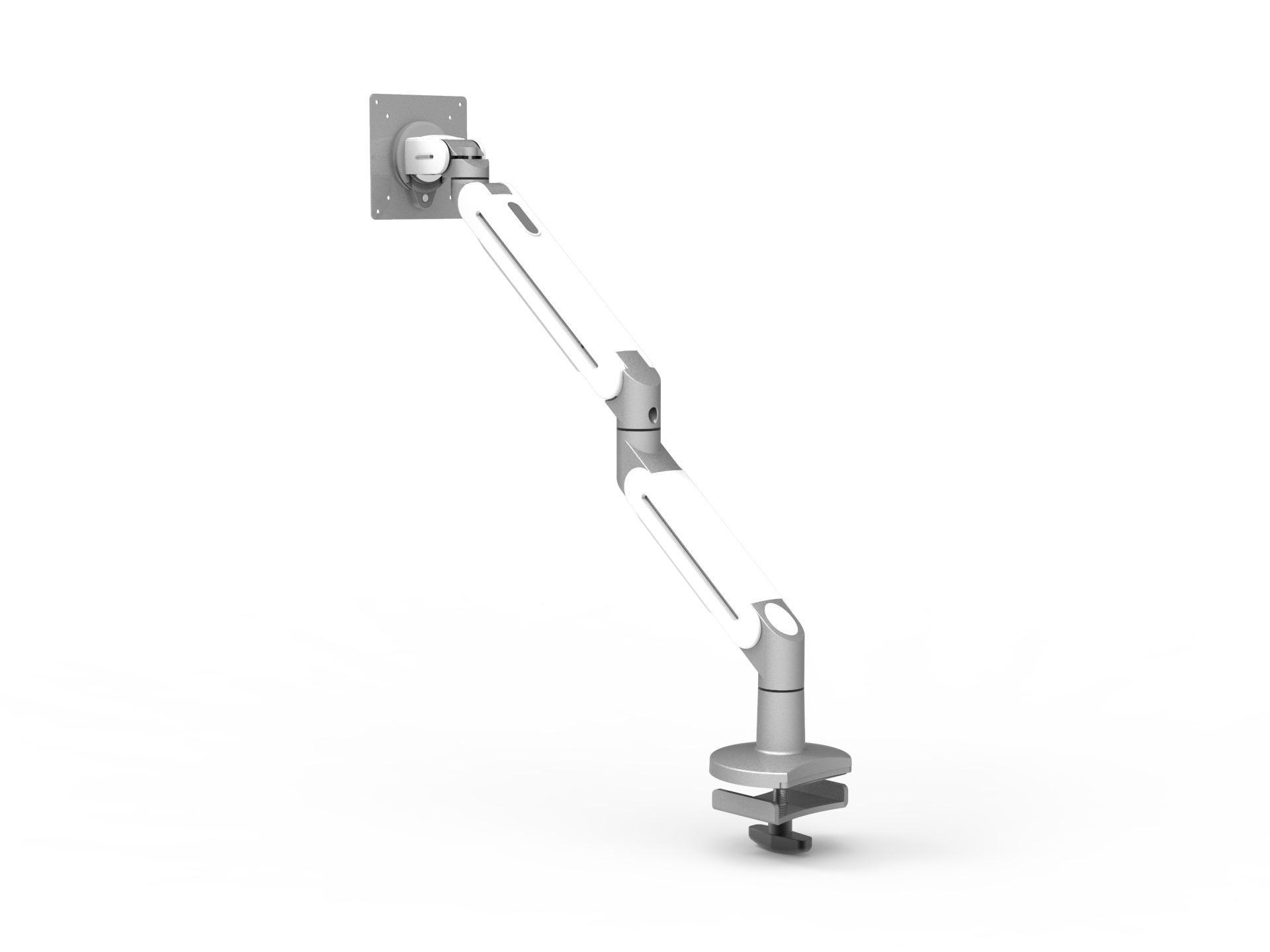

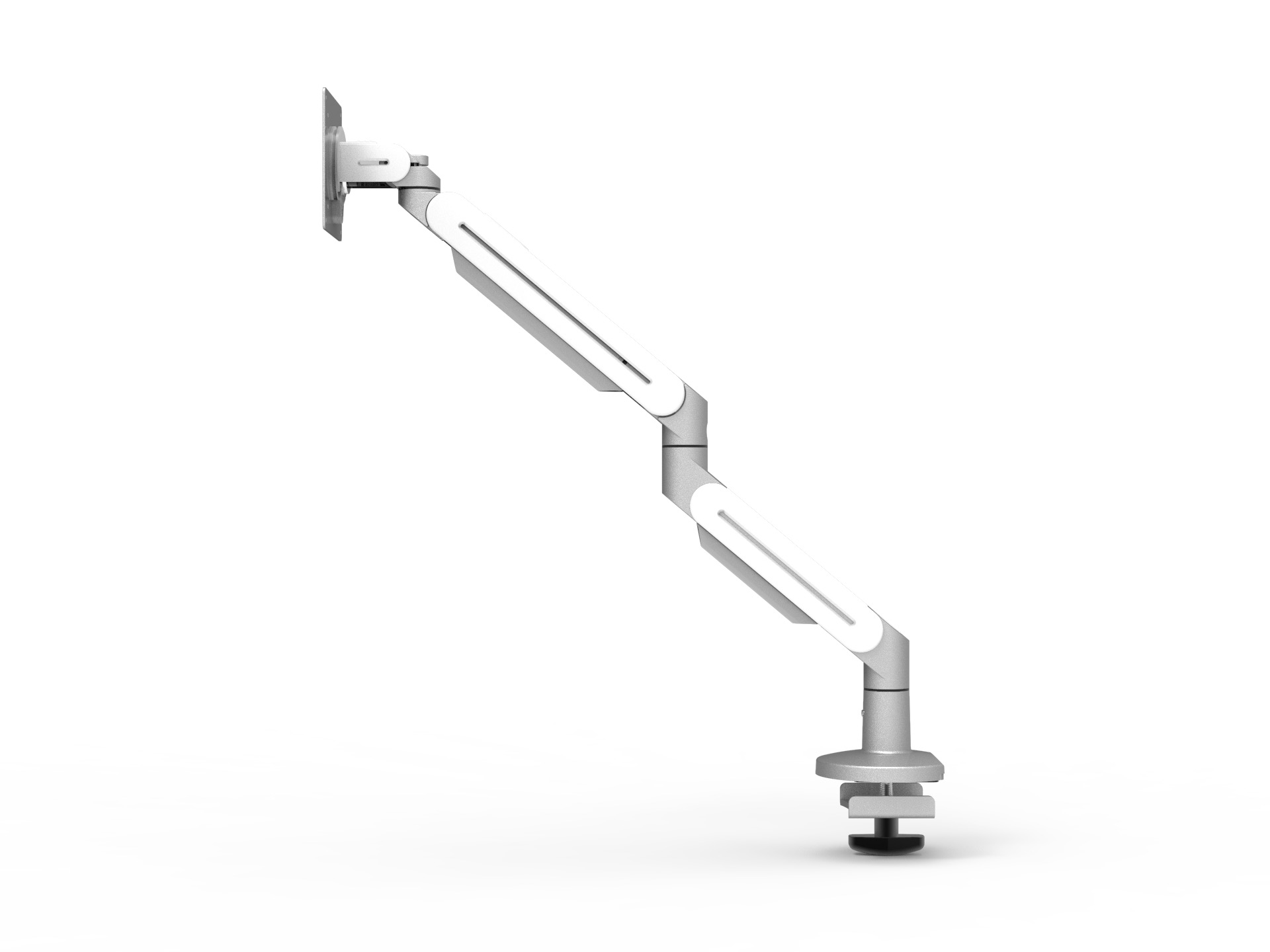

EENA-202/302 Dragonfly Series Single Monitor Arm - Clamp or Grommet Mount
The ergonomically monitor arm allows the screen to achieve precise position to improve work efficiency, comfort, and well-being. Dragonfly Single Monitor Arm is designed for clamp or grommet mount application and the loading range could be 1.5~8kg (3.3-17.6lbs). The avant-garde appearance and smooth line design, made of aluminum alloy makes it safer and stronger to use.
Key Features
- The tension can be set according to different screen weights
- Easy installation, high applicability, no need to rely on tools to quickly inserted or replaced the screen
- Improve working posture, relieve work fatigue or cervical discomfort caused by work
- The screen can be adjusted to the best sight height, distance, and direction according to the individual sitting posture, reducing visual fatigue caused by reflections
- Optional anti-theft kit to prevent the screen from being stolen
- Tools are included in the monitor arm for temporary repairs
- Long-distance monitor arm that can be unfolded and extended, keeping the space tidy and versatile
- Flexibly change the screen position and orientation to share and communicate information on the screen
- The cable management can integrate all power cables to keep your work environment neat and simple
- Simple and practical design, neat and simple appearance, suitable for office and home use
- The arm is made of aluminum alloy, which is sturdy and durable, and can support large-size screens
- Guardian Air Filter Moisture System
Specifications
| Loading Capacity: | 1.5 Kgs (3.3 lbs) ~ 8 Kgs (17.6 lbs) |
| Vesa Compatibility: | 100 x 100 / 75 x 75 VESA plate |
| Monitor Size: | ≤ 32" LCD/TV |
| Dimensions: | 118 W x 517 D x 211 ~ 507 H |
| Screen Tilt: | +90° -40° |
| Screen Rotation: | 360° |
| Color: | Silver and Black |
| Certification: | Taiwan SGS, BIFMA 5.5 |
| Warranty: | 5 years |
| Manufacturer: | Made in Taiwan |
Why Use This Product?
Computers, laptops, and tablets are everywhere in every home and office. With the development of these important technologies, they also create some new risks. If you feel neck pain after using and watching these 3C products for a long time, choosing the ErgoEdge monitor arm will be your good choice. You can freely adjust the height and angle of the screen and place the screen in the most suitable position.
Quick Release
ErgoEdge Monitor Arm adopts exclusive and advanced design, the screen can be quickly installed and removed without tools. You only need to fix the VESA plate on the back of the screen, and only need a few screws to complete the operation. After completing this step, you only need one person to easily install or remove the screen.
360° Rotation
ErgoEdge Monitor Arm can be easily rotated 360 degrees without removing any screws. When you often need to discuss work with colleagues, you can adjust the screen freely and easily. The tension control can also be fine-tuned to hold the screen in the correct, comfortable position.
Mechanical Springs
It can be easily moved and adjusted without knob to fix. This is due to the precision spring mechanism hidden in the upper arm. When using it for the first time, insert hex key into the back of the arm to adjust, so that the spring output can balanced the weight of the screen, and it can be moved at will.
Installation Options
Clamp Mount: On a table with a thickness of 10-94.7MM, it can be installed at the back of the desk to save desktop space.
Grommet Mount: On a table with a thickness of 11-47MM. A hole can be drilled anywhere on the table and the monitor arm can be fixed in this hole.
ErgoEdge Advantages
- Many years of ergonomic project experience and excellent ergonomic product design experience
- Innovators who specialize in internal product development, continue to develop new products, and move towards the goal of ergonomics industry benchmarks
- High-quality products that can be used for a long time to ensure their sustainability
- If the product stops working, we will provide internal repair services
- Expert team and on-site personnel will provide you with friendly and competent advice
Our Services
Pre-Sales
Provide product suggestions, drawing, price estimation, freight estimation, answer customer questions
In-Sales
Provide customer solutions, provide product packaging information, suggest delivery methods, and deliver shipping services
After-Sales
Customer complaint handling, assembly instructions, delivery documents provision
Delivery Options
We provide many delivery methods. Samples or small orders are suitable for express delivery (DHL, FEDEX, TNT, SF, etc.). Large orders are suitable for air and sea transportation. We have our own freight forwarders, of course, if you have your own express account or logistics mode, please let us know.
Global Markets
Applications
- Office Furniture
- Security Center
- Stock Exchange Center
- Control Room
- Workstation
